Dalam pemrograman metode MVC ( Model, View , Controller) kita mengenal model sebagai tempat menempatkan proses bisnis dan juga tabel database. Begitu juga dalam pemrograman berbasis Odoo 17 kita akan membuat model sebagai tempat menyimpan definisi tabel.
Pembuatan model pada pemrograman dengan Odoo 17 adalah seperti pada langkah-langkah berikut ini
- Membuat file untuk model
Catatan gambar: folder asrama direname ke asramaku

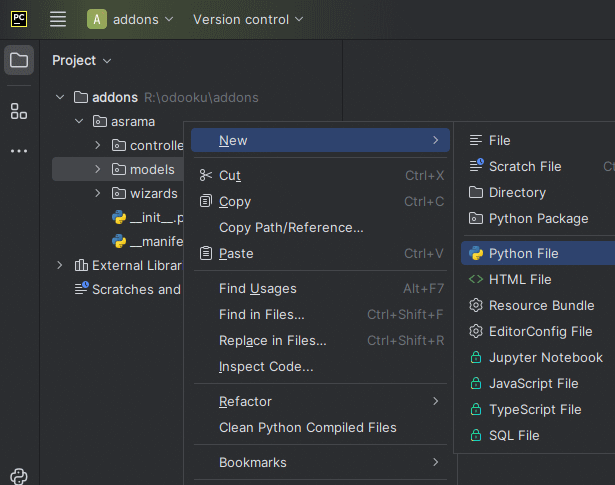

Kita masuk ke PyCharm membuat file baru pada folder models.

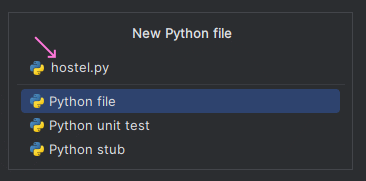

Kita kemudian menamai file tersebut kemudianklik Python file

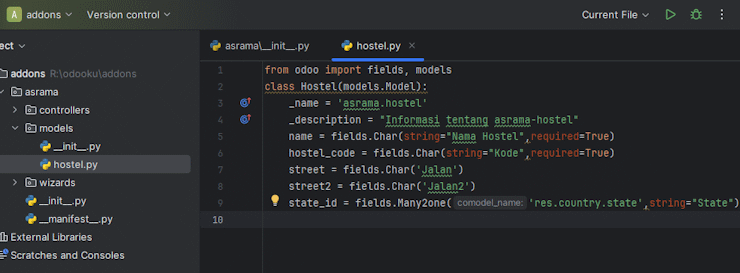

- Mengedit model

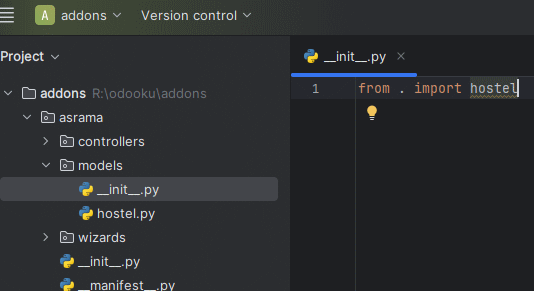

Kita melengkapi pembuatan program dengan source seperti gambar di atas atau seperti di bawah inifrom odoo import fields, models class Hostel(models.Model): _name = 'asrama.hostel' _description = "Informasi tentang asrama-hostel" name = fields.Char(string="Nama Hostel",required=True) hostel_code = fields.Char(string="Kode",required=True) street = fields.Char('Jalan') street2 = fields.Char('Jalan2') state_id = fields.Many2one('res.country.state',string="State") - Model – init
from . import hostel

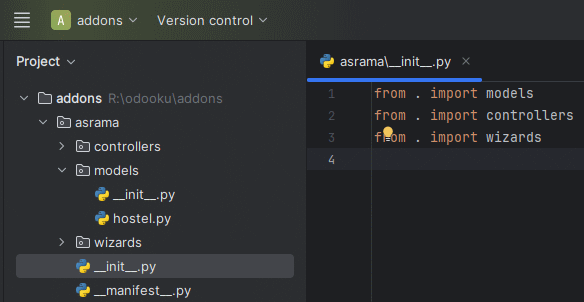

- Modul init
from . import models from . import controllers from . import wizards
- Perintah chmod
$ chmod -R a+rx asramaku
- Restart Odoo
# docker restart odooku-web-1

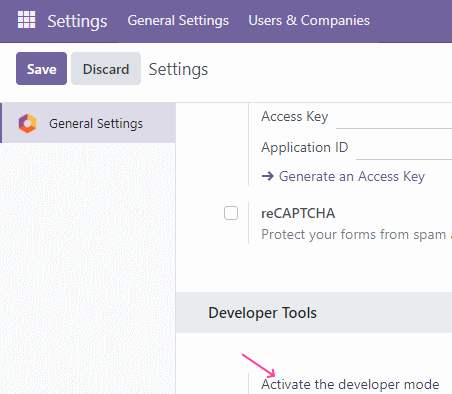

- Activate developer mode

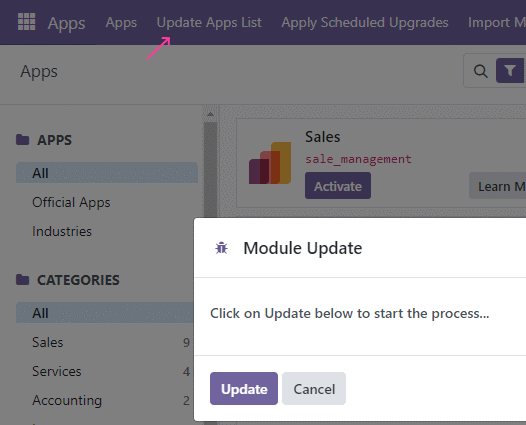

- Update app list
- Activate modul
- Melihat model yang terbentuk

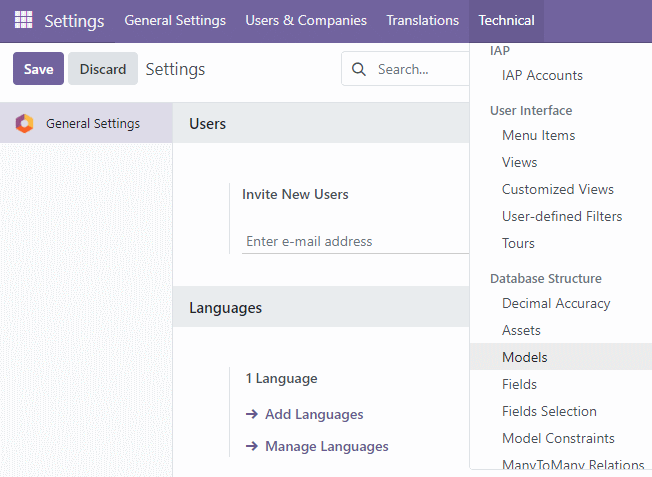

Dari aplikasi Settings kita menuju menu Technical | Models seperti pada gambar di atas.

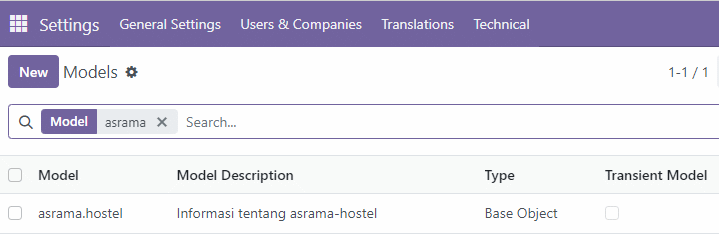

Kita kemudian membuat filter yang berkaitan dengan model yang baru saja kita buat.

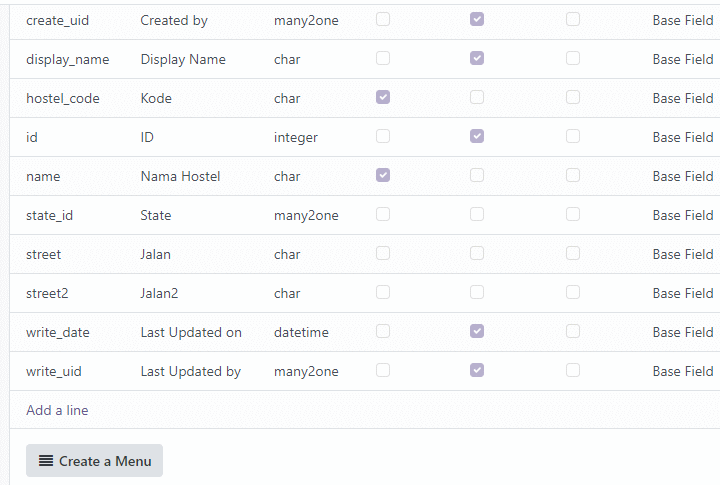

Tampak field-field yang dibuat oleh model yang kita buat.
- Masuk ke container database
# docker exec -it odooku-db-1 bash root@f28c3368476e:/# psql -U odoo -d rnd.metiu.co.id psql (15.6 (Debian 15.6-1.pgdg120+2)) Type "help" for help. rnd.metiu.co.id=#
- Melihat semua tabel
rnd.metiu.co.id=# \dt; List of relations Schema | Name | Type | Owner --------+-----------------------------------------------------+-------+------- public | asrama_hostel | table | odoo public | auth_totp_device | table | odoo public | auth_totp_wizard | table | odoo public | base_document_layout | table | odoo public | base_enable_profiling_wizard | table | odoo public | base_import_import | table | odoo public | base_import_mapping | table | odoo public | base_import_module | table | odoo public | base_language_export | table | odoo public | base_language_import | table | odoo public | base_language_install | table | odoo public | base_module_uninstall | table | odoo public | base_module_update | table | odoo public | base_module_upgrade | table | odoo public | base_partner_merge_automatic_wizard | table | odoo public | base_partner_merge_automatic_wizard_res_partner_rel | table | odoo public | base_partner_merge_line | table | odoo public | bus_bus | table | odoo public | bus_presence | table | odoo public | change_password_own | table | odoo public | change_password_user | table | odoo public | change_password_wizard | table | odoo public | decimal_precision | table | odoo public | iap_account | table | odoo public | iap_account_info | table | odoo public | iap_account_res_company_rel | table | odoo public | ir_act_client | table | odoo public | ir_act_report_xml | table | odoo public | ir_act_server | table | odoo public | ir_act_server_group_rel | table | odoo public | ir_act_server_webhook_field_rel | table | odoo public | ir_act_url | table | odoo public | ir_act_window | table | odoo public | ir_act_window_group_rel | table | odoo public | ir_act_window_view | table | odoo public | ir_actions | table | odoo public | ir_actions_todo | table | odoo public | ir_asset | table | odoo public | ir_attachment | table | odoo public | ir_config_parameter | table | odoo - Melihat tabel yang baru saja dibuat

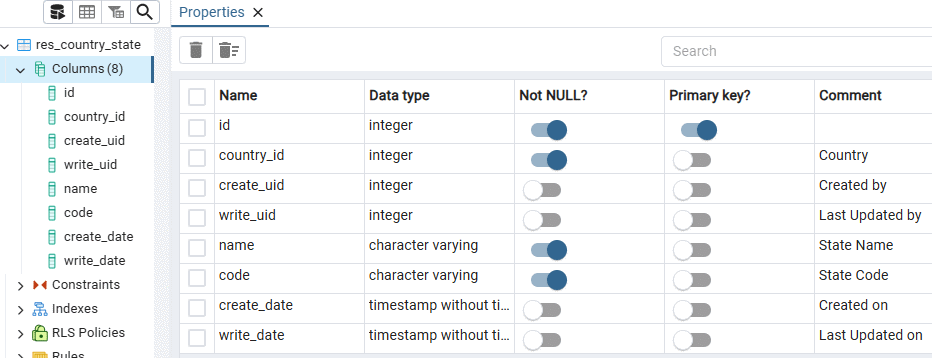

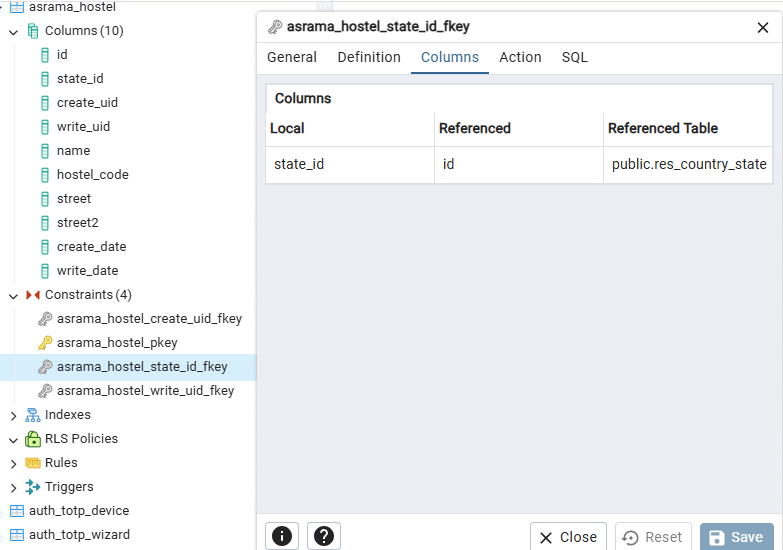

rnd.metiu.co.id=# \d asrama_hostel; Table "public.asrama_hostel" Column | Type | Collation | Nullable | Default -------------+-----------------------------+-----------+----------+------------------------------------------- id | integer | | not null | nextval('asrama_hostel_id_seq'::regclass) state_id | integer | | | create_uid | integer | | | write_uid | integer | | | name | character varying | | not null | hostel_code | character varying | | not null | street | character varying | | | street2 | character varying | | | create_date | timestamp without time zone | | | write_date | timestamp without time zone | | | Indexes: "asrama_hostel_pkey" PRIMARY KEY, btree (id) Foreign-key constraints: "asrama_hostel_create_uid_fkey" FOREIGN KEY (create_uid) REFERENCES res_users(id) ON DELETE SET NULL "asrama_hostel_state_id_fkey" FOREIGN KEY (state_id) REFERENCES res_country_state(id) ON DELETE SET NULL "asrama_hostel_write_uid_fkey" FOREIGN KEY (write_uid) REFERENCES res_users(id) ON DELETE SET NULL - Catatan gambar: folder asrama direname ke asramaku
Informasi lebih lanjut silahkan mengunjungi
1. https://www.odoo.com/documentation/17.0/developer/tutorials/server_framework_101/01_architecture.html .
2. https://www.odoo.com/documentation/17.0/developer/reference/backend/orm.html .
3. https://www.postgresqltutorial.com/postgresql-administration/postgresql-show-tables/ .
4. https://www3.ntu.edu.sg/home/ehchua/programming/sql/PostgreSQL_GetStarted.html .
Kunjungi www.proweb.co.id/implementasi-odoo/ untuk menambah wawasan implementasi Odoo ERP.
